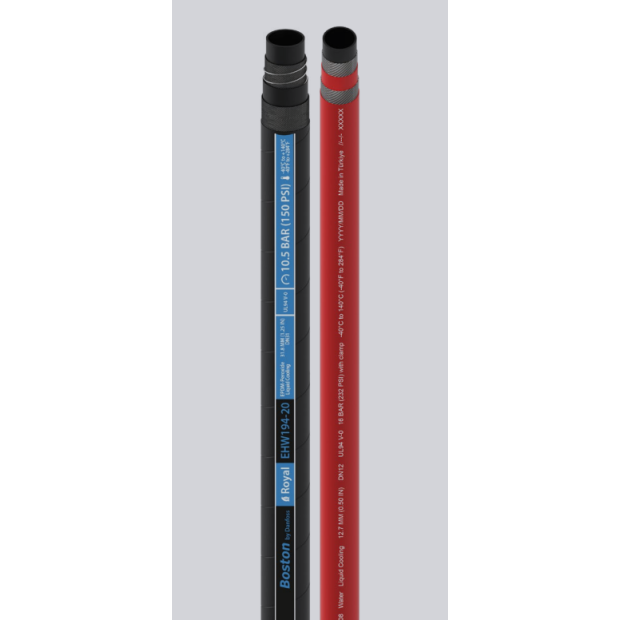

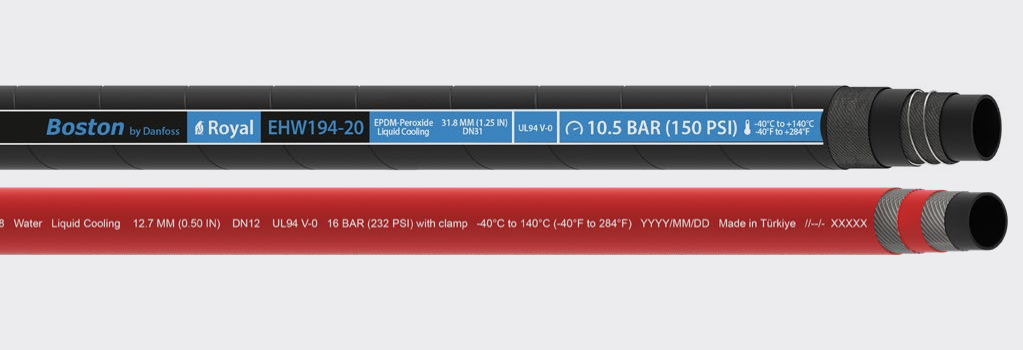

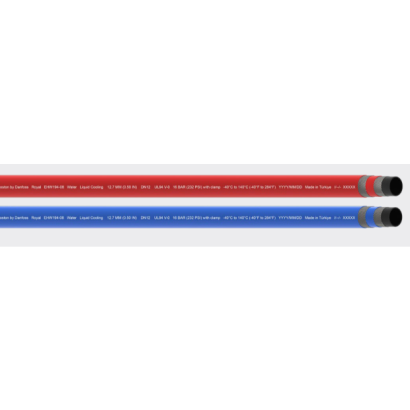

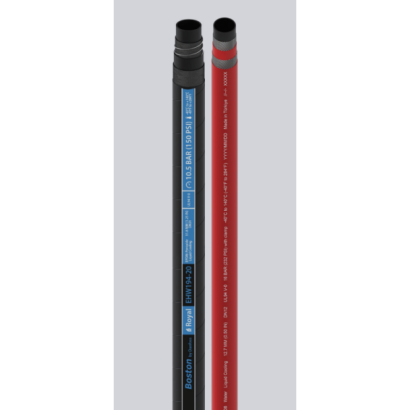

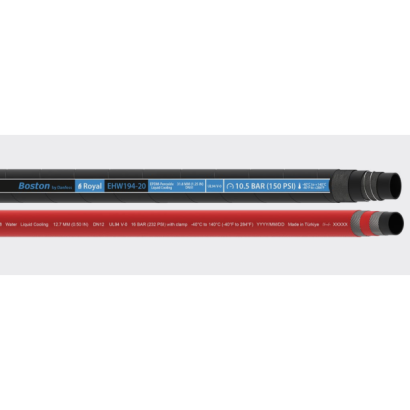

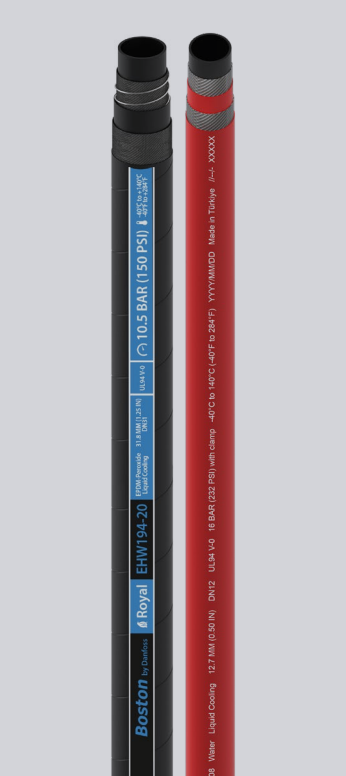

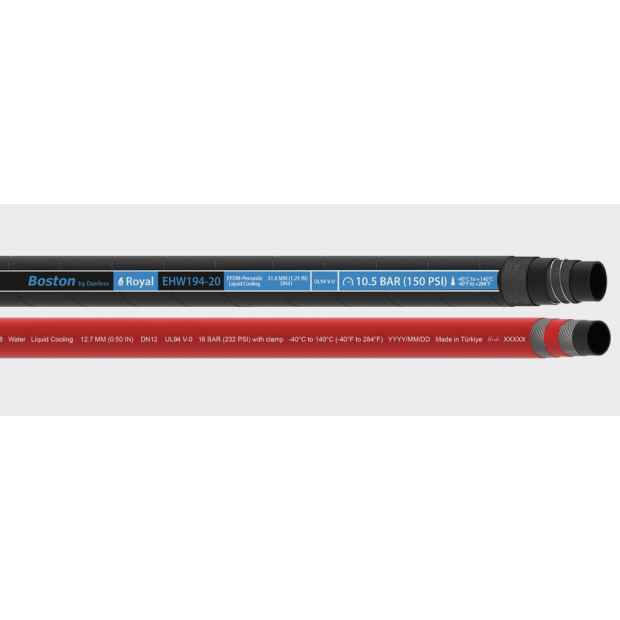

Boston® by Danfoss｜Royal EHW194（Liquid Cooling Hose）
Liquid cooling is an innovative technique using water
as a cooling medium to help keep computer processor
temperatures low in data center applications.
UL 94 V-0 Smooth cover Multiple colors available（BK/BU/RD） Tight space friendly
Product Overview
Liquid cooling is an innovative technique using water as a cooling medium to help keep computer processor temperatures low in data center applications. Danfoss designed Bostone Royal with this emerging technology in mind UL 94 V-O rated and offering superior flexibility and kink resistance, this hose was designed to maneuver in tight spaces to simplify installation and maintenance.Offered in a variety of sizes and colors, with approved Danfoss fittings-we have made it easy to emerge into this new market.Markets/Applications
- Data centers
- Electronic component cooling
- Telemedicine
- Cryptocurrency mining
- IT thermal management
Features
- UL 94 V-0 rated
- Exceeds ASTM E84 Class 1/A Requirements
- Fire resistant cover、Surface smooth、Low coefficient of friction
- Flexible with torsional strain and kink resistance
- Multiple color offerings

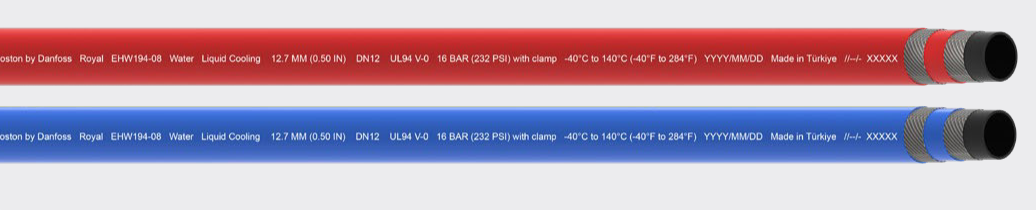

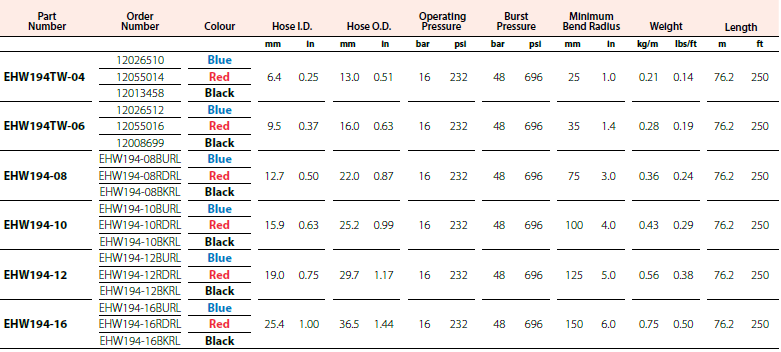

Specification sheet（EHW194TW / EHW194）

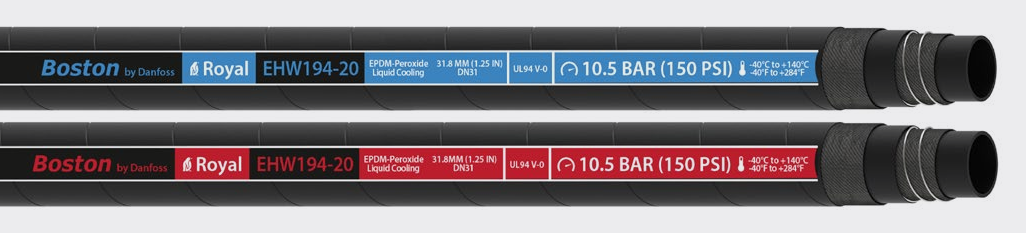

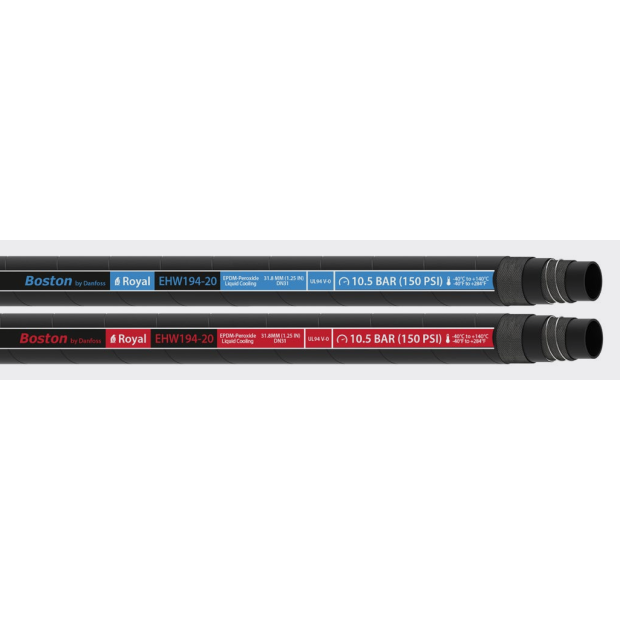

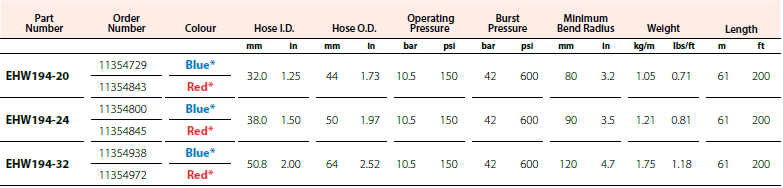

Large caliber specification（EHW194-20 / -24 / -32）

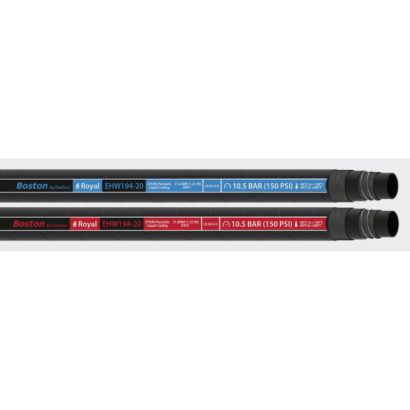

*Hose colour is black with layline colour as indicated
Construction
- Tube： Peroxide-cured, zinc free,synthetic EPDM rubber
- Reinforcement： 2 -ply textile(1 helical wire)
- Cover： Fire retardant, Peroxide-cure Synthetic EPDM Rubber

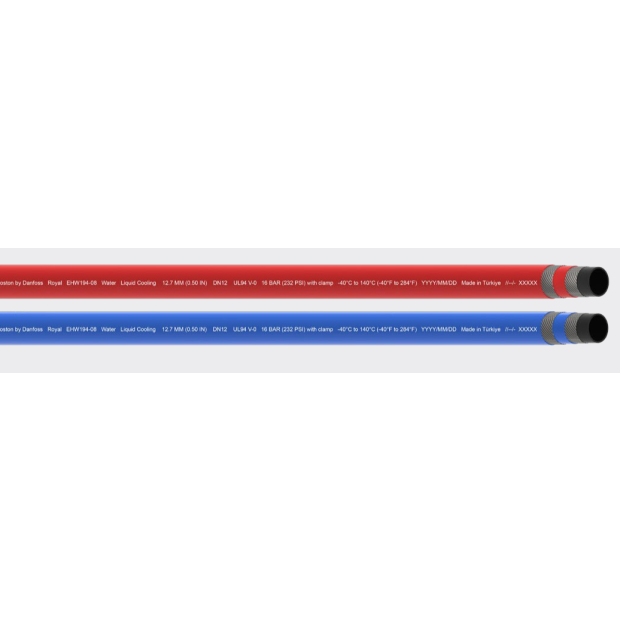

- Colors： Black（BK）、Blue（BU）、Red（RD）
- 100% Sulfur free construction
Temperature / Certifications / Packaging
- Operating Temperature： -40°C ～ +140°C（-40°F ～ +284°F）
- Certifications：UL 94 V-0
- Packaging： 61m (200ft.) coil
Qualified connections
- Danfoss 1G crimp fittings
- Danfoss 100B socketless fittings
- Danfoss Hansen UQD
- Danfoss Hansen FD83
