Danfoss Hansen® MQD & MQDB
Danfoss Hansen MQD and MQDB are designed for single-phase (water/glycol) systems for liquid cooling of electronics. This product is compliant to NVIDIA Quick Disconnect (MQD & MQDB) Specification 3.2 and can be interchanged with vendors compliant to this specification.
NVIDIA Spec 3.2 100% helium-leak tested SS304 + EPDM seals 3 different sizes：MQD02/03/04 Terminal ends：ISO 11926-3 / BSPP / Hose tail
Product Features
- Stainless steel 304 material and EPDM seals
- Color identification (red and blue) for hand mate MQD
- All parts are 100 % helium-leak tested
- Operating temperature range : -40° C to +150 ° C(-40°F to 302°F)
Applications & Markets
- Technology Cooling System (TCS) for Electronics
- Data Center Liquid Cooling

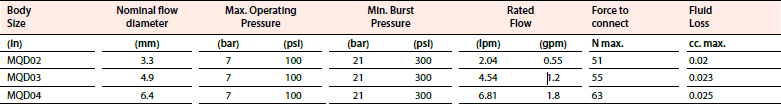

Scope of operation
- Maximum operating pressure：7 bar（100 psi）
- Maximum burst pressure：21 bar（300 psi）
Physical characteristics

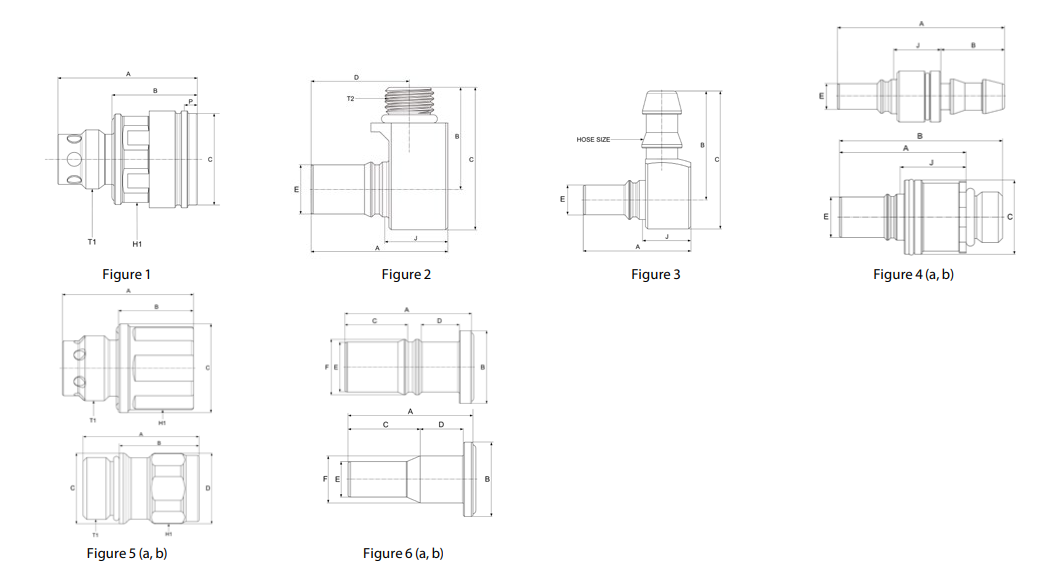

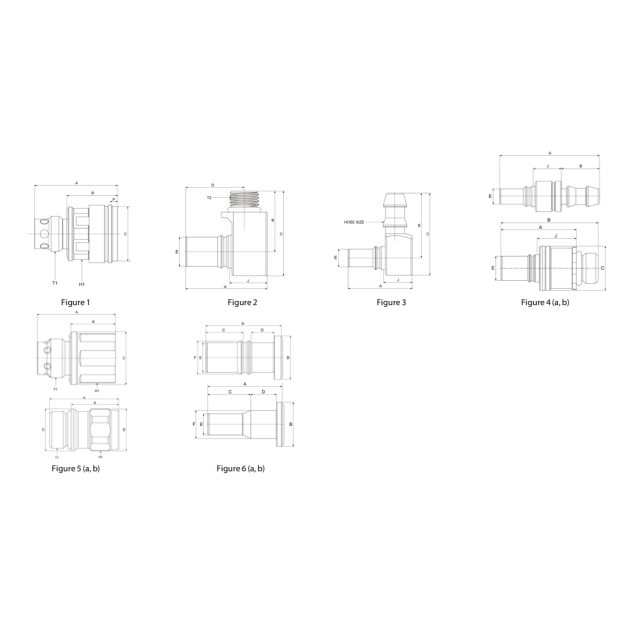

Overview of Dimensions：Figure 1–6 (including different termination forms and configuration illustrations)

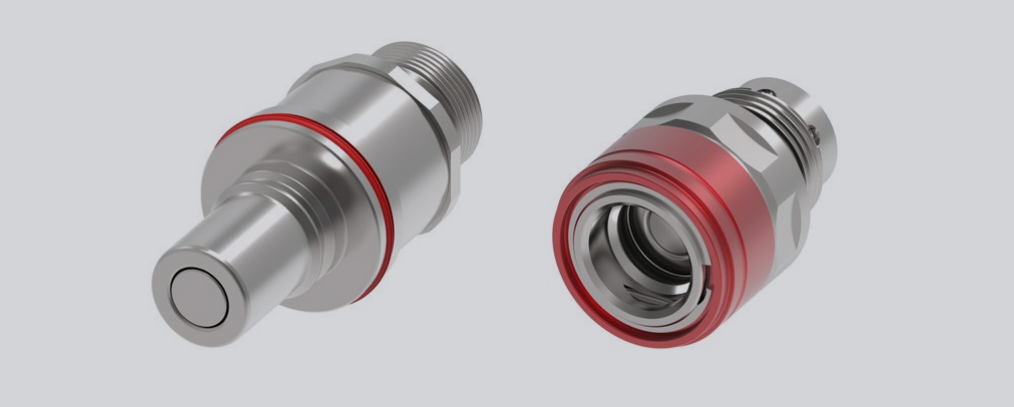

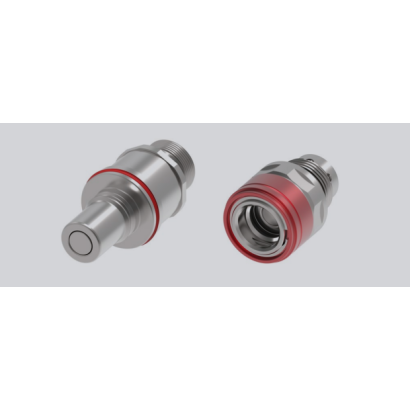

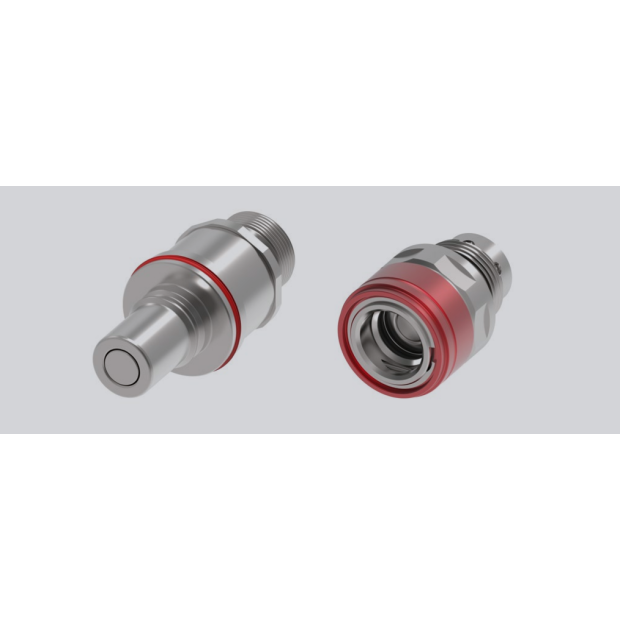

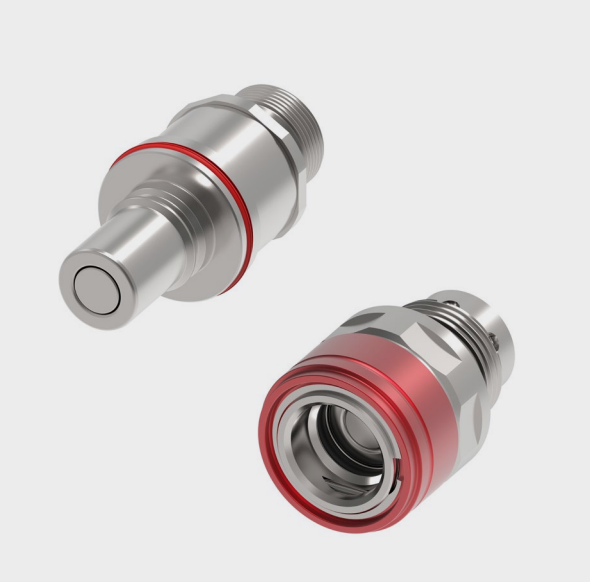

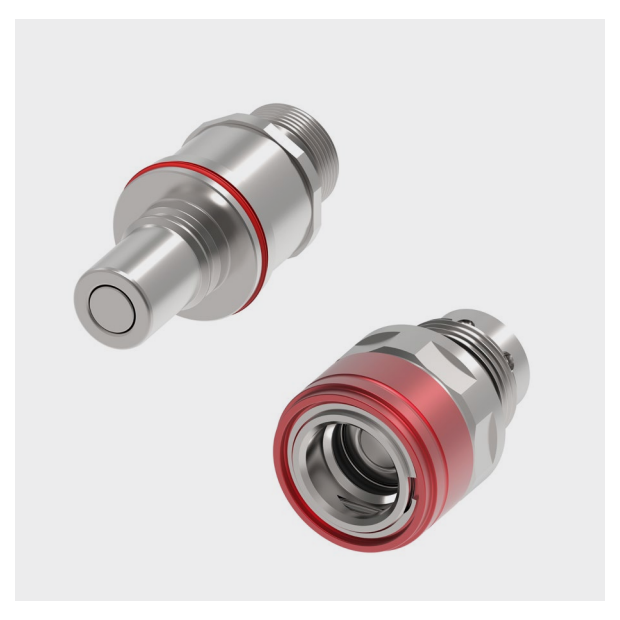

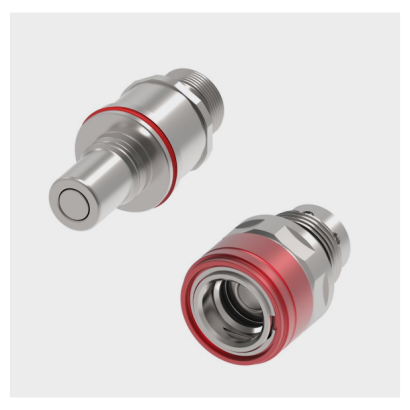

產品示意（灰底）：展示端接與接頭外觀，適合用於規格頁版面。

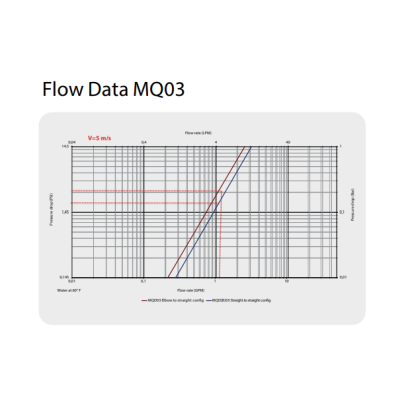

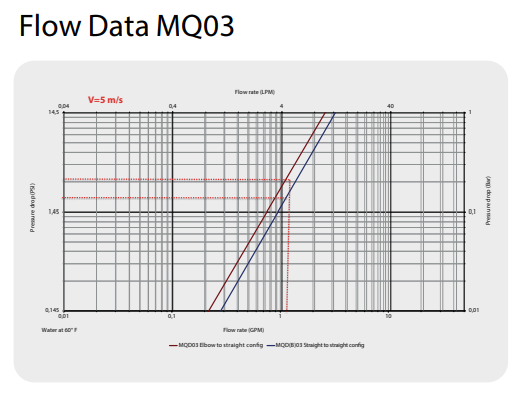

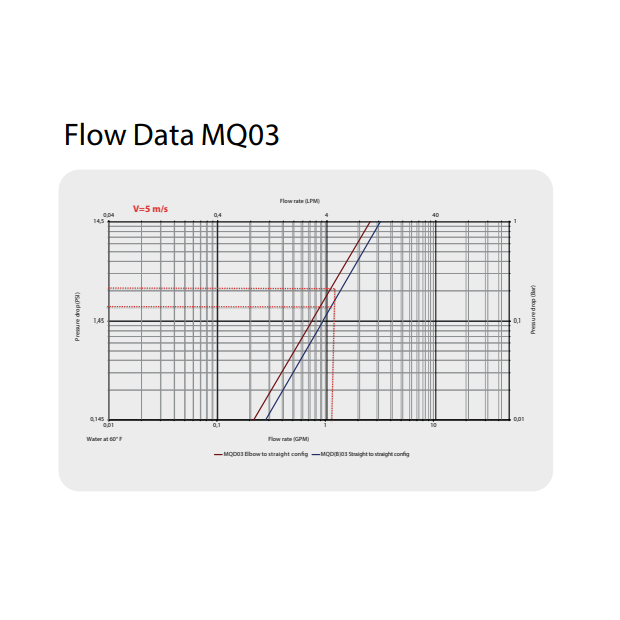

Flow Data MQ03：Elbow-to-straight 與 Straight-to-straight config（ Includes V=5 m/s Reference in the Diagram）

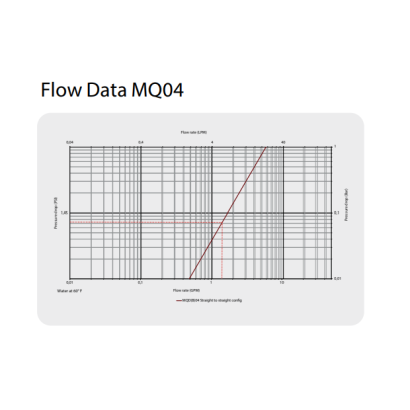

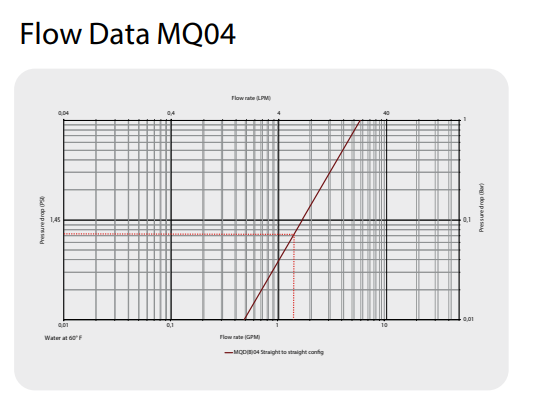

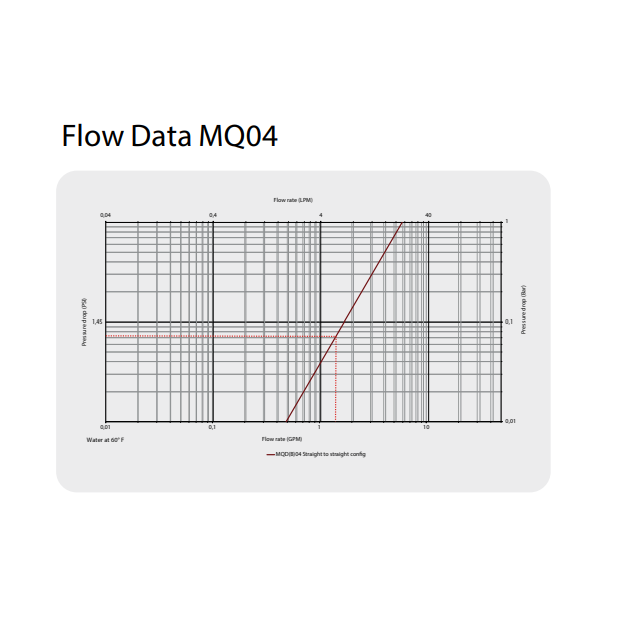

Flow Data MQ04：Straight to straight config（60°F Water）。

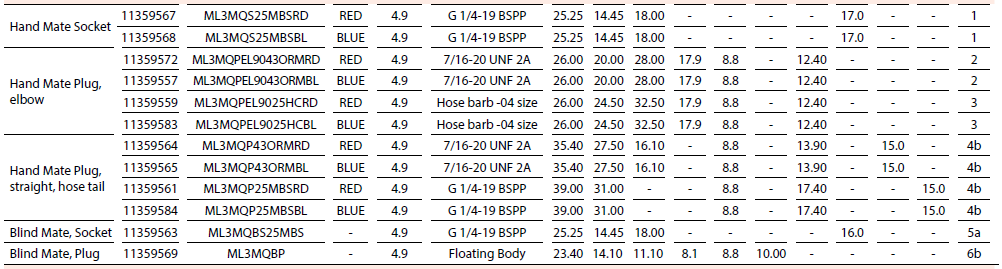

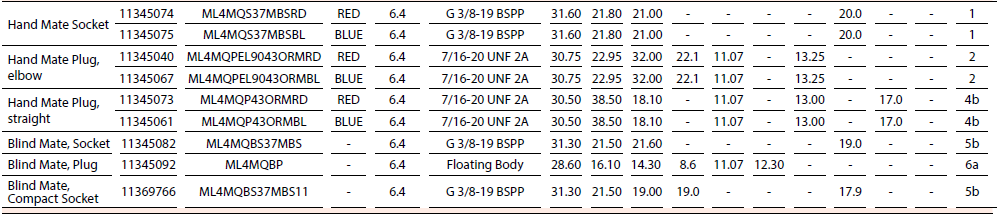

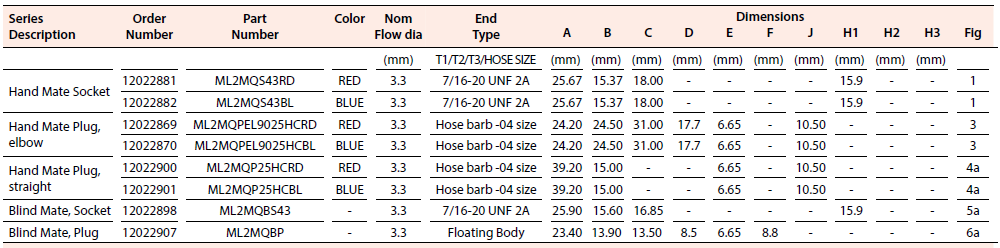

Dimensions
Connected Length（Hand mate）：Socket mounting face → Plug mounting face = B + JFor more installation details, please refer to the MQD specification document.
