Aeroquip® by Danfoss Data Cryo DC394 hose
As data centers evolve to handle increasing processing demands,liquid cooling is the innovative solution for maintaining optimal processor temperatures.

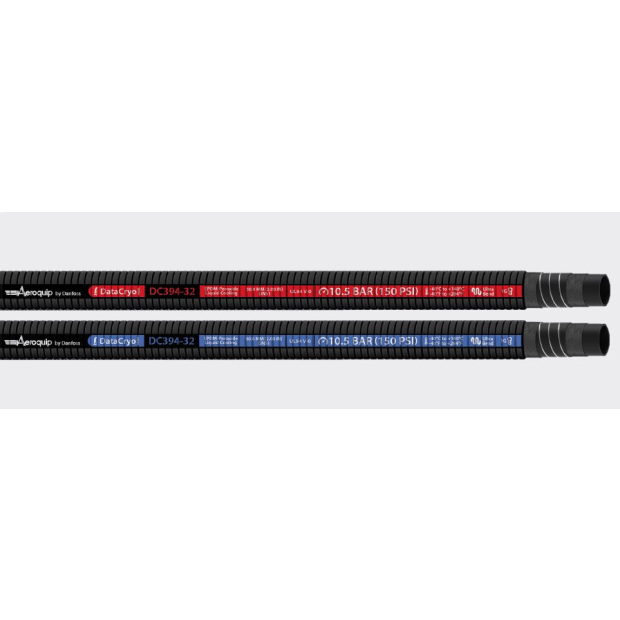

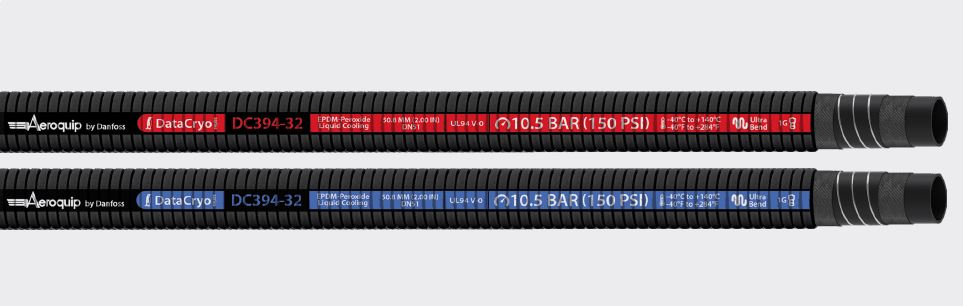

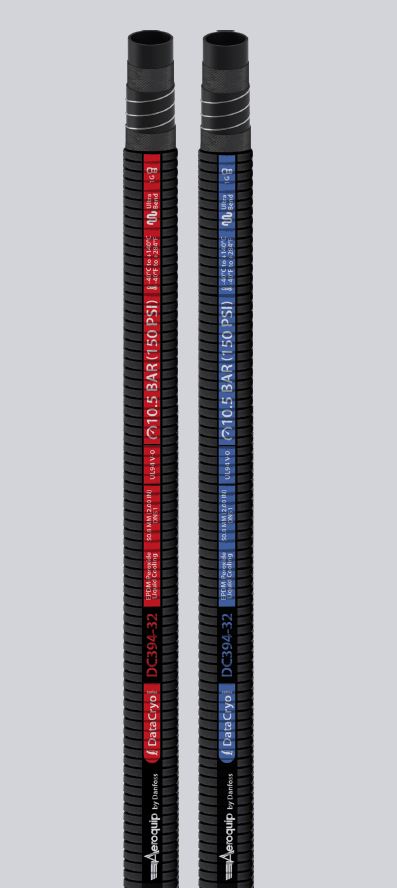

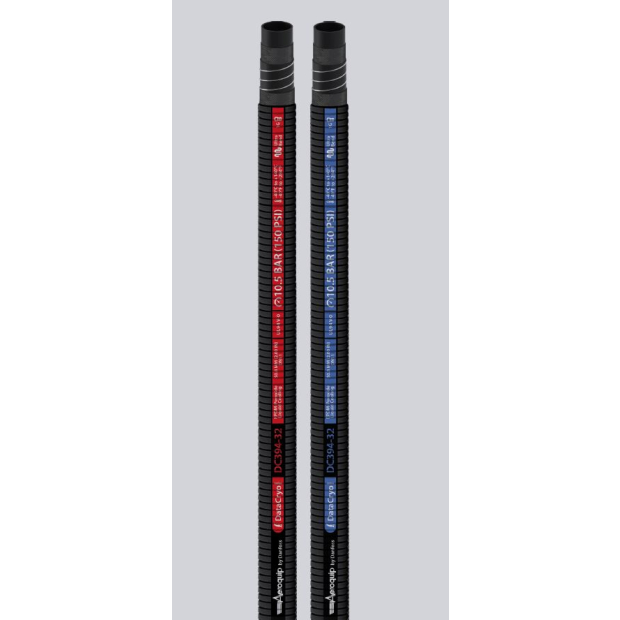

The Aeroquip by Danfoss DataCryo DC394 hose is an advanced EPDM solution designed for the safety and ease of use required by these emerging applications.
UL 94 V-0 Low coefficient of friction Halogen‑free rubber formulation
Product Overview
Engineered for modern data center environments,DC394 is an ultra- exible source line hose that enables easy installation and ensures leak-free coolant delivery to server racks.Markets/Applications
- Data centers
- Electronic component cooling
- Cryptocurrency mining
- IT thermal management
Features
- UL94 V-0 flame resistance rated cover
- Zinc and calcium free peroxide-cured EPDM tube
- Low coefficient of friction for improved pressure drop and overall liquid cooling system efficiency
- Best-in-class bending radius and lowest force to bend for improved flexibility and easy installation
- Halogen‑free rubber formulation that reduces corrosion risk while supporting environmental sustainability

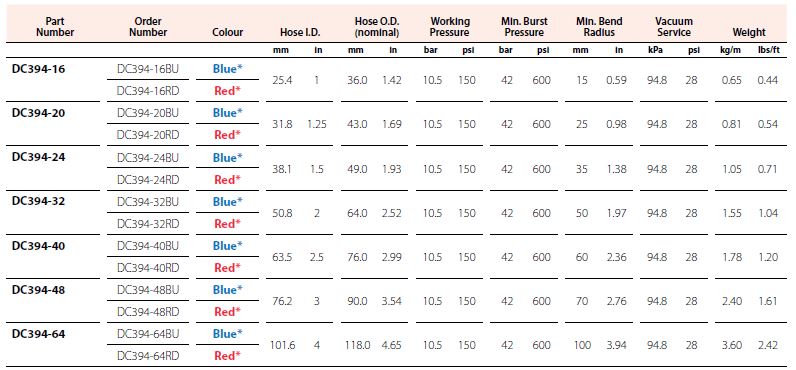

Specification sheet
*Hose colour is black with layline colour as indicated
Construction
- Tube：Peroxide-cured, zinc and calcium free, synthetic EPDM rubber
- Reinforcement： Textile fabric with steel wire helix
- Cover： Fire retardant, Peroxide-cure Synthetic EPDM Rubber
- Colors： Black（BK）、Blue（BU）、Red（RD）
- 100% Sulfur free construction
Temperature / Certifications / Packaging
- Operating Temperature： -40°C ～ +140°C（-40°F ～ +284°F）
- Certifications：UL 94 V-0
- Packaging： 61m (200ft.) coil
Qualified connections
- Danfoss 1G crimp fittings
